High-speed Photo-detector Module

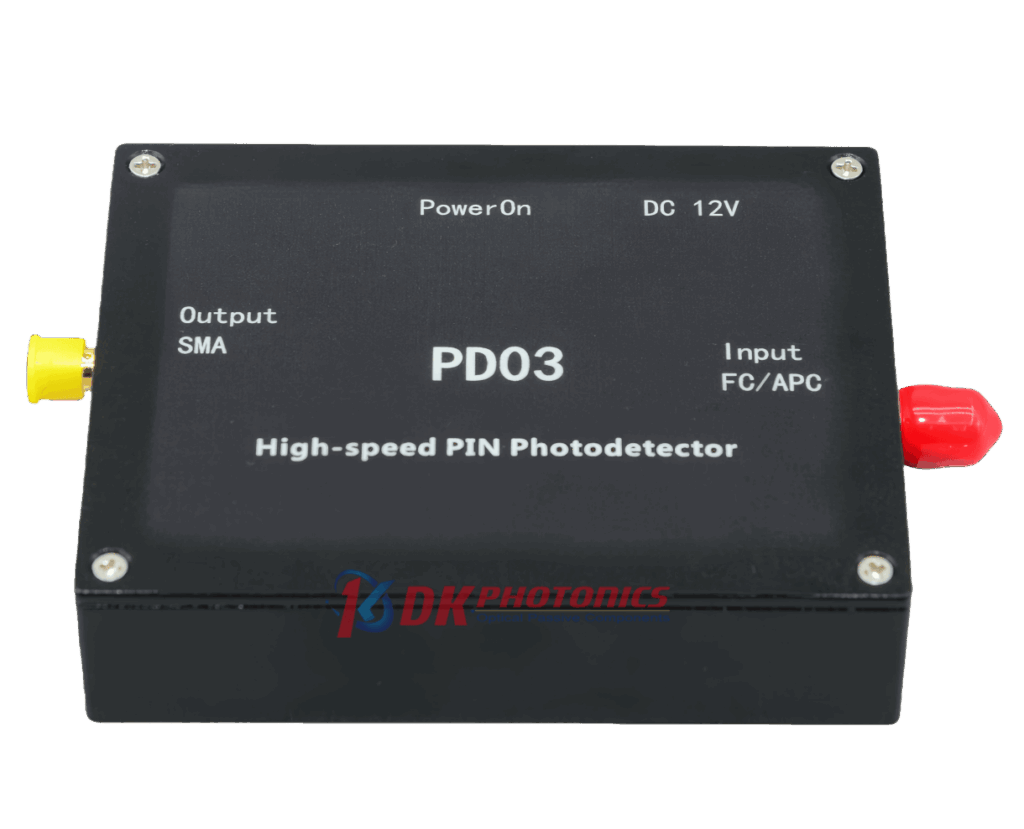

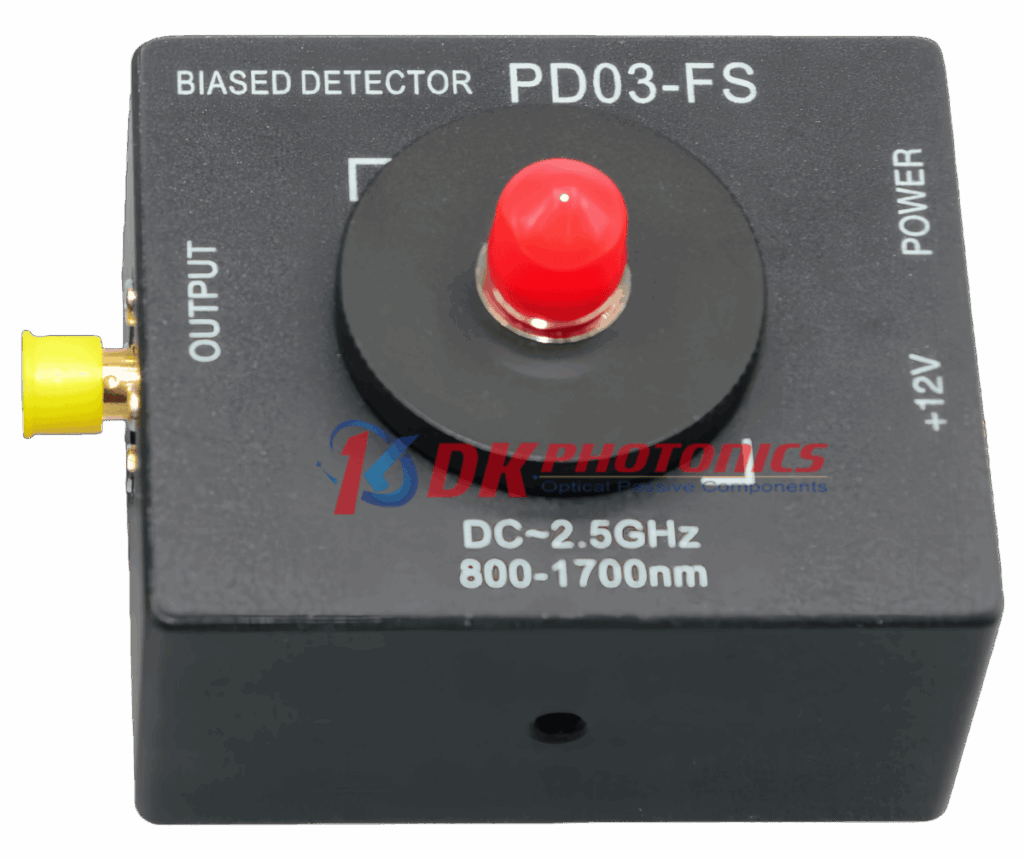

PD03 is a high-speed InGaAs PIN photodetector module, suitable for optical transmission system and other photoelectric conversion. The photoelectric response bandwidth is ≥3GHz, data receiving rate is up to 2.5GB/s, rising edge time is 125ps, and response bandwidth covers the wavelength of 1020~1650nm.The RF signal output using SMA interface, easy to connect with RF test equipment.

Features

  • 3GHz Bandwidth
  • 125ps rising edge
  • Dc coupling output
  • high speed SMA interface

Applications

  • Fiber Communications
  • Short Laser Pulse Measurement
  • Fiber Nonlinearity

Performance Specifications

Optical Parameter
Unit
Typical Values
Remark
Type
-
PD03

Wavelength Range
nm
1020~1650

Optical Power Input Range
dBm
-10 ~ 18

Rising Edge Time
ps
125

Maximum Electrical Pulse Output
mV
1500

Photoelectric Response
A/W
1.0

mV/mW
30

Return Loss
dB
-37

Output Impedance
Ω
50

High Cutoff Frequency
GHz
0~3.0
@3dB
Input/Output Fiber Type
-
SMF-28e

Fiber Connector
-
FC/APC

RF output port

SMA

Power Supply
V
12V DC, <5W

Dimensions
mm
100(W)×70(D)×25(H)mm

Operation Temperature Range

-5~+55°C

Operation Humidity Range

0~70%




Package Dimension

Ordering Information

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
