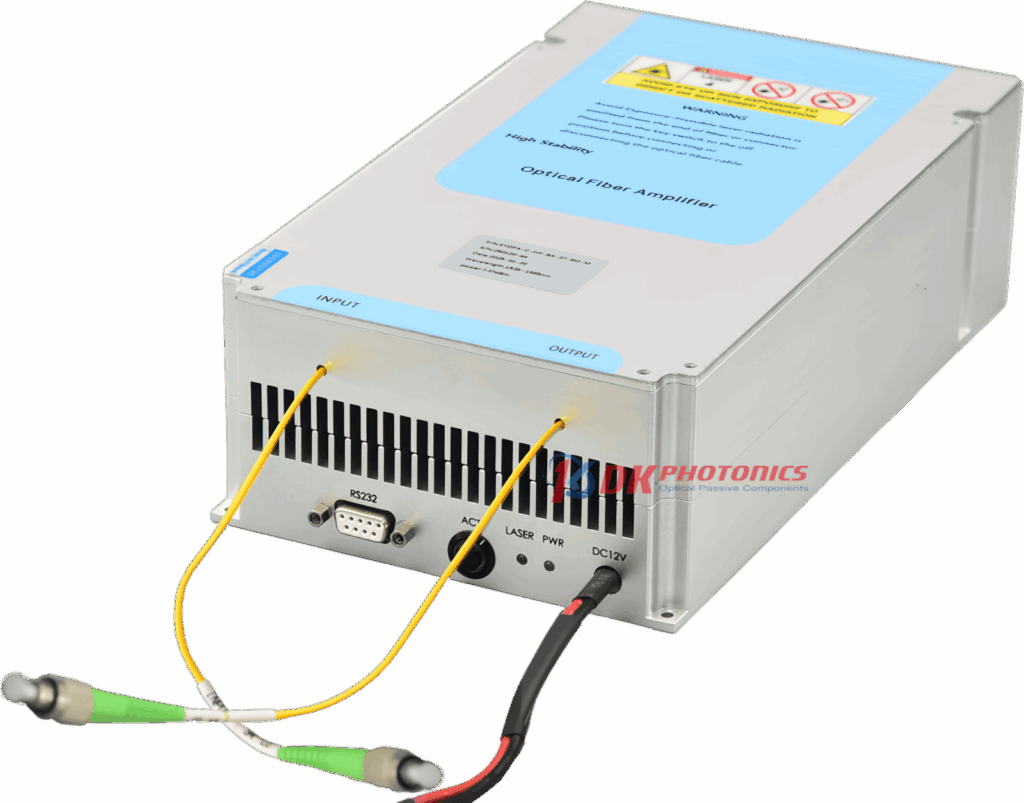

Thulium-doped Fiber Amplifier

DK Photonics Thulium-doped Fiber Amplifier (TDFA) can be used to amplify 2um laser signals in the power range of -10dBm~+10dBm, with a maximum saturated output power of 40dBm. It is commonly used to increase the emission power of laser sources.

Features

  • Wide wavelength range
  • High output power
  • Low noise

Applications

  • Fiber Communications
  • Fiber Laser

Performance Specifications

Optical Parameter Unit Typical Values Remark
Signal Wavelength nm 1930~2010 Customizable wavelength
Input power -10~10
Saturated output power dB 20/23/25/26/27/30/33/37/40 @0dBm input
Noise dB ≤5.0 @0dBm input
Polarization Dependent Gain nm ≤0.3
Polarization Mode Dispersion ps ≤0.5
Input/output Isolation dB >35
Optical power monitoring – Intput optical power monitoring; Output optical power monitoring
Fiber Type – SMF-28e or SM1950(Default) 1.0m length
Optical Connector – FC/APC only for low power test
Control Mode – ACC/APC/AGC(37/40dBm without AGC) *Note 1



Electrical and environmental parameters Desktop Module
Control Mode Touch screen/ RS232 RS232
Communication Interface DB9 Female DB9 Female
Power Supply 100~240V AC, <30W 12V DC, <60W
Optical power (dBm) 20/23 25/26/27/30/33/37/40 20/23/25/26 27/30/33
Dimensions(mm) 255(W)×322(D)×115(H) 376(W)×340(D)×112(H) 139(W)×206(D)×27(H) 139(W)×235(D)×70(H)
Operation Temperature Range -5~+35°C
Operation Humidity Range 0~70%

*Note 1:

  1. ACC mode: Automatic current control: the EDFA pump working current is set by the user and automatically locked by the EDFA to achieve a constant pump current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is applicable to all EDFA models.
  2. APC mode: Automatic power control mode, where the user sets the signal light output power of the EDFA. Based on the output power monitored by the PD, the EDFA automatically controls and adjusts the pump current to achieve stable output signal. In APC mode, the user can adjust the output power within a range of 10% to 100% of the maximum output power. The advantage of APC mode is that when the input optical power fluctuates, EDFA will minimize the fluctuation of output power as much as possible
  3. AGC mode: Automatic gain control mode, in which the user sets the gain coefficient of EDFA. EDFA will automatically control and adjust the pump current based on the input and output power detected by PD to achieve the most stable gain multiple. When the input optical power fluctuates, the output power will also fluctuate accordingly, but the gain coefficient is generally stable.

Package Dimension

Ordering Information

P/N: ①-②-③-④-⑤-⑥

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better.

① ② ③ ④ ⑤ ⑥
TDFA Signal wavelength (nm) Amplifier type Saturated output power (dBm) Fiber type Package Type
1930: 1930~2010nm BA: Booster Amplifier 20/23/25/26/27/30/33/37/40 S28: SMF-28e

S19: SM1950

 M: Module

B: Desktop

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
