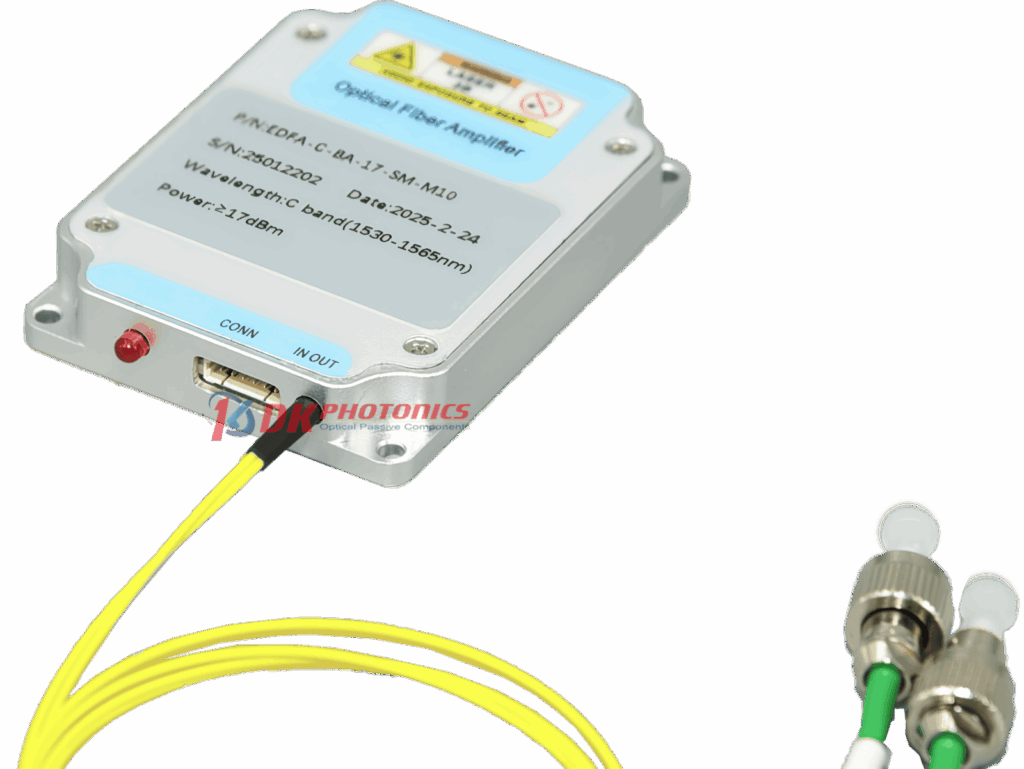

Erbium-doped Fiber Booster Amplifier in Micro Package for C-band

DK Photonics Erbium-doped Fiber Booster Amplifier in Micro-size for C-band can be used for power amplification of laser signals in the wavelength range of 1530~1565nm. It also adopts a unique miniaturized packaging design, which has the advantages of high gain, low noise, and small size, making it very suitable for use in narrow space conditions.

Features

  • Wide wavelength range
  • Miniaturized design
  • Low noise

Applications

  • Fiber Communications
  • Fiber Laser
  • Fiber Sensors

Performance Specifications

Optical Parameter Unit Typical Values Remark
Wavelength Range nm 1535~1565nm C-band
Input Power dBm -6~+3
Saturated output power dBm 10/13/17/20/23 @-3dBm input
Noise dB <5.0 @-3dBm input
Polarization Dependent Gain dB ≤0.3
Polarization Mode Dispersion ps 0.5
Input/output Isolation dB >35
Optical power monitoring – Intput optical power monitoring; Output optical power monitoring 50 (W) × 50 (D) × 15 (H) module doesn’t support input monitoring
Fiber Type – SMF-28e 1.0m length
Optical Connector – FC/APC only for low power test
Working mode – ACC/APC *Note 1



Electrical and environmental parameters Module
Control Mode RS232/ TTL serial communication RS232
Communication and power Interface ZH2.54- 4 Pin port ZH1.5-6 Pin port
Power Supply DC 5V DC 5V
Dimensions(mm) M15-2: 50(W)×50(D)×15(H) M10: 45(W)×65(D)×10(H)
Operation Temperature Range -5~+35°C
Operation Humidity Range 0~70%

*Note 1:

  1. ACC mode: Automatic current control: the EDFA pump working current is set by the user and automatically locked by the EDFA to achieve a constant pump current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is applicable to all EDFA models.
  2. APC mode: Automatic power control mode, where the user sets the signal light output power of the EDFA. Based on the output power monitored by the PD, the EDFA automatically controls and adjusts the pump current to achieve stable output signal. In APC mode, the user can adjust the output power within a range of 10% to 100% of the maximum output power. The advantage of APC mode is that when the input optical power fluctuates, EDFA will minimize the fluctuation of output power as much as possible

Package Dimension

Erbium-doped Fiber Booster Amplifier in Micro Package for C-band

Ordering Information

P/N:①-②-③-④-⑤-⑥

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better.

① ② ③ ④ ⑤ ⑥
EDFA Operation Wavelength Amplifier type Output power(dBm) Fiber Type Package Type
  C: C-band BA: power BA amplifier 10/13/17/20/23 SM: SMF-28e M15-2: Module

M10: Module

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
