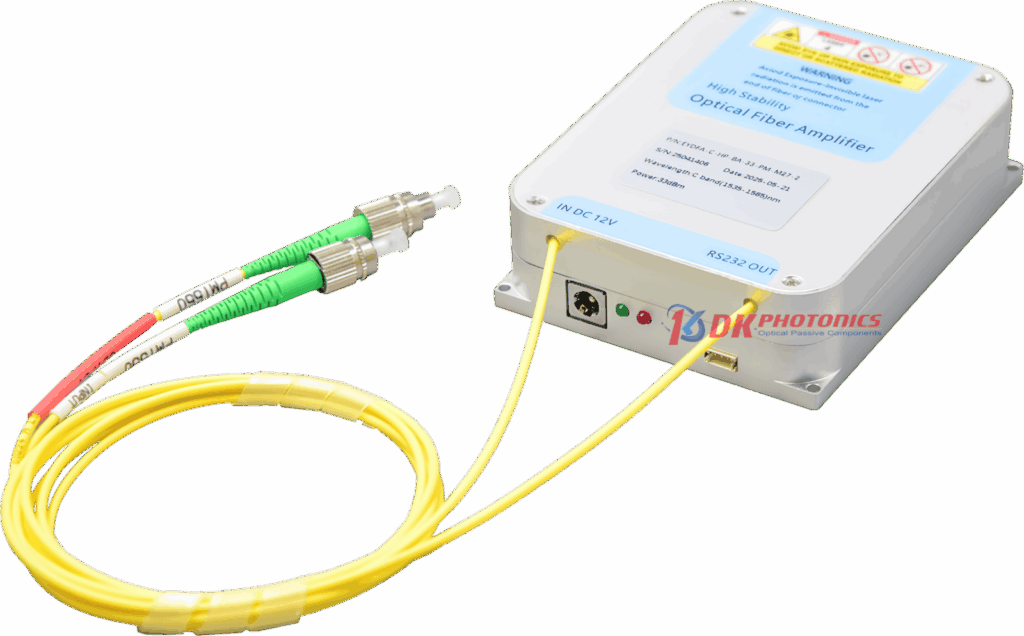

High Power Erbium-doped Fiber Amplifier Module in Compact Size for C-band

DK Photonics High Power Erbium-doped Fiber Amplifier Module in Compact Size for C-band is based on the principle of laser amplification of optical signals in erbium ytterbium co doped fibers. It adopts a uniquely designed optical path structure and reliable high-power laser heat dissipation technology. The working wavelength range covers 1535-1565nm, and the output optical power is 0.5-2W, with the advantages of high power and low noise. The compact module design facilitates system integration and can be used for fiber optic sensing, fiber optic communication, laser radar, and more.

Features

  • High gain
  • Single-mode or polarization maintaining fiber
  • Compact Size package

Applications

  • Fiber Communications
  • Fiber Laser
  • Fiber Sensors

Performance Specifications

Optical Parameter Unit Typical Values Remark
Wavelength Range nm 1535~1565nm C-band
Input Power dBm -6~+3
Standby protection input power dBm ≤-10
Saturated output power dBm 27/30/33 @-3dBm input
Noise dB <6.0 @-3dBm input
Uneven gain wavelength dB ≤1 @Different wavelengths
Polarization Dependent Gain dB ≤0.5 –
Polarization Mode Dispersion ps 0.5 –
Polarization Extinction Ratio PER dB – ≥20
Input/output Isolation dB >35
Optical power monitoring – Intput optical power monitoring; Output optical power monitoring
Fiber Type – SMF-28e PM1550 1.0m length
Optical Connector – FC/APC only for low power test
Working mode – ACC/APC/AGC *Note 1



Electrical and environmental parameters Module
Control Mode RS232
Communication Interface ZH1.5- 3 Pin port
Power Supply DC 12V 3A
Optical power (dBm) 27 30 33
Actual power consumption (W) 11 14 20
Dimensions(mm) 80(W)×100(D)×27(H)
Net weight(g) 232
Operation Temperature Range -5~+35°C
Operation Humidity Range 0~70%
Cooling method Bottom contact heat dissipation

*Note 1:

  1. ACC mode: Automatic current control: the EDFA pump working current is set by the user and automatically locked by the EDFA to achieve a constant pump current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is applicable to all EDFA models.
  2. APC mode: Automatic power control mode, where the user sets the signal light output power of the EDFA. Based on the output power monitored by the PD, the EDFA automatically controls and adjusts the pump current to achieve stable output signal. In APC mode, the user can adjust the output power within a range of 10% to 100% of the maximum output power. The advantage of APC mode is that when the input optical power fluctuates, EDFA will minimize the fluctuation of output power as much as possible
  3. AGC mode: Automatic gain control mode, in which the user sets the gain coefficient of EDFA. EDFA will automatically control and adjust the pump current based on the input and output power detected by PD to achieve the most stable gain multiple. When the input optical power fluctuates, the output power will also fluctuate accordingly, but the gain coefficient is generally stable.

Package Dimension

Ordering Information

P/N:①-②-③-④-⑤-⑥

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better.

① ② ③ ④ ⑤ ⑥
EDFA Operation Wavelength Amplifier type Output power(dBm) Fiber Type Package Type
  C: C-band HP-BA: High power BA amplifier 27/30/33 SM: SMF-28e

PM: PM1550

 M: Module

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
