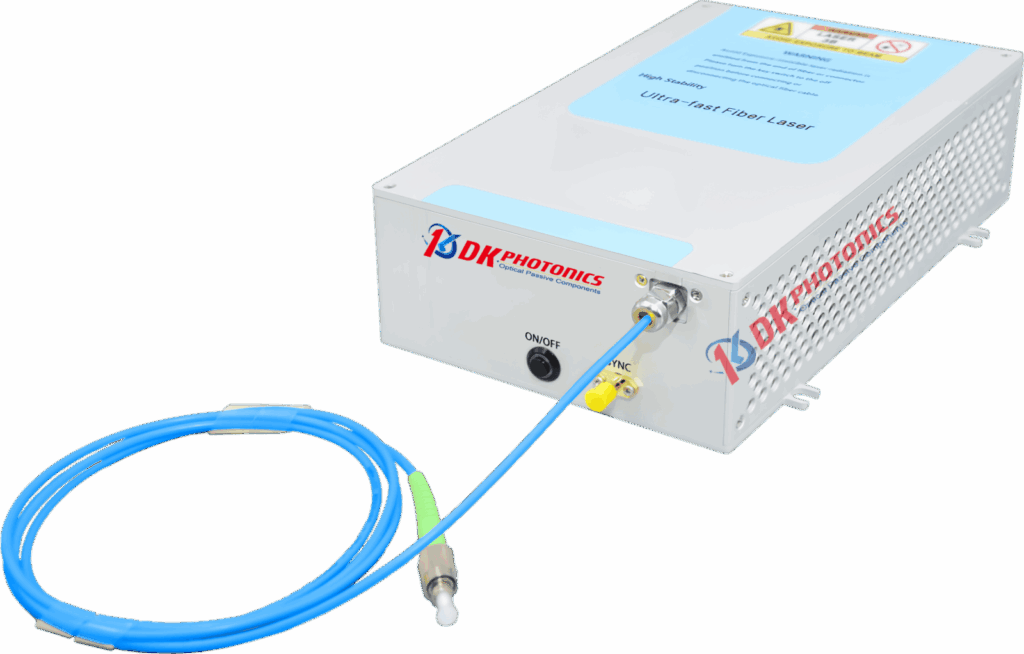

DK Photonics 1030/1064nm Picosecond Pulse Fiber Laser series ultrafast lasers utilizes ytterbium doped fiber as the working medium, combined with fully polarization maintaining mode locking technology and active servo control system, to achieve stable output of picosecond pulse laser in the 1030-1064nm wavelength band. It can fully self-start and work stably for a long time, with the characteristics of narrow laser pulses and high peak optical power. This light source can be used for scientific research in high-power lasers, supercontinuum spectroscopy, laser ranging, and other fields.
* Accept customization of parameters such as pulse width, power, and repetition frequency.
| Optical Parameter | Unit | Typical Values | Remark |
| Center wavelength | nm | 1030/1064 | Customizable |
| Spectral width | nm | 0.3 | Customizable |
| Pulse Width | ps | 10/20/50/100 | Customizable |
| Output average power | mW | 1~2000 | Customizable |
| Power instability | – | < ±1% | 25℃, 5 min after starting |
| Repeat frequency | MHz | 15~80 | Oscillator basic repetition frequency |
| Pulse frequency adjustable range | – | basic repetition rate / N | acousto-optic frequency reduction, minimum to 1kHz |
| Single pulse energy | nJ | >1 | |
| Polarization state | Linear polarization | ||
| Laser output type | – | PM980 fiber with FC/APC | |
| Preheat time | min | <1 |
| Electrical and environmental parameters | Desktop | Module |
| Control Mode | Touch screen / RS232 | Touch screen / RS232 or USB |
| Synchronous electrical signal interface | SMA | SMA |
| Power Supply | 100~240V AC, <30W | 12V DC, <20W |
| Dimensions | 255(W)×285(D)×115(H)mm | M65:200(W)×145(D)×65(H)mm |
| Operation Temperature Range | -5~+35°C | |
| Operation Humidity Range | 0~70% | |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
| PSPL | Wavelength | Pulse Width(fs) | Output average power (mW) | Repeat frequency | Output Type | Package Type |
| 1030/1064 | 10/20/50/100 | 10/50/200/2000 | 15/50/100 | SM: HI1060
PM:PM980 FS: Free-Space |
M: Module
B: Desktop |
If you need to customize other specifications, please provide detailed description for your requirement.
